Overview

For broadcasters who wish to benefit from the cost savings and reliability offered by SureStream but don’t want to invest in new Codec hardware, the APT SureStreamer is the perfect solution.

APT SURESTREAMER can sit in front of any existing single port IP Audio Codec from any manufacturer enabling the use of widely available, affordable IP connections to deliver broadcast-grade audio with no interruptions, glitches or drop-outs. It continues to provide a seamless audio stream, even when one of the contributory links suffers a total Loss of Connection.

APT SURESTREAMER can also be deployed as a multicast or multiple unicast node to reduce Telco costs significantly by migrating the stream  replication function away from the source encoder and closer to the decoding devices.

Powerful
Performance

Audemat ScriptEasy Powerful Performance

  • Increases link reliability by stream diversification
  • Connects to IP Codec using UDP/RTP
  • Data agnostic – streams any data (audio, video, EDI-data and other real-time, mission-critical data)

Powerful
Control

Audemat ScriptEasy Powerful Control

  • Intuitive WEB GUI for ease of use
  • SNMP monitoring included
  • AUDEMAT ScriptEasy enabled, allows automated actions

Powerful
Savings

Audemat ScriptEasy Powerful Savings

  • Ensures “Always On” redundancy
  • Cost savings when used with public internet
  • APT SureStreamer deployed as a node can reduce Telco costs dramatically

Features

  • Enables affordable upgrade to cutting-edge IP technology
  • Connects to standard IP audio codecs from many manufacturers, as long as they use UDP/RTP
  • Connect via 2 wired connections OR
  • Connect via both wired & WIFI links
  • Ensures “Always ON” Redundancy
  • Enables cost savings with use of public internet
  • Algorithm-agnostic unit - does not matter what coding scheme used
  • Uses tried & tested, multiple award-winning APT SureStream Technology

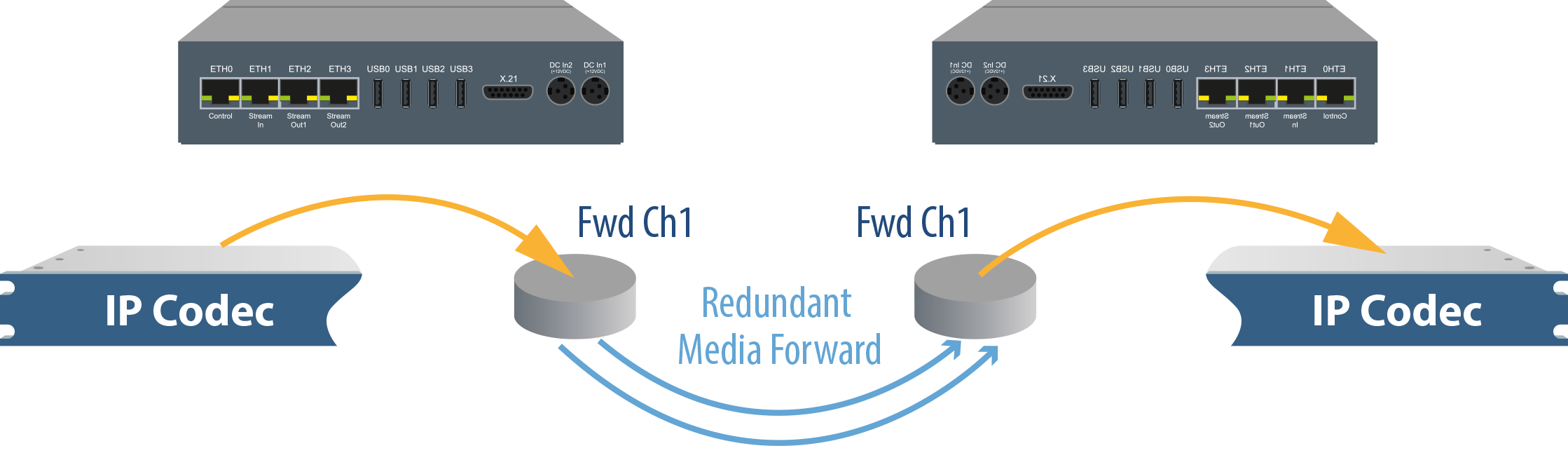

The Principle of Stream Forwarding

APT SureStreamer  uses SureStream technology to create multiple streams for increased reliability. These streams are then forwarded to the destination codec where a flawless, single stream is received.

APT SURESTREAMER The Principle of Stream Forwarding

SureStream for Broadcast Quality Audio over IP

SureStream technology is a revolutionary innovation from APT that enables broadcasters to use inexpensive IP links and still maintain professional broadcast-grade audio quality and reliability.

It delivers the audio quality and reliability you expect from a T1/E1 link at a fraction of the associated cost. APT SureStream Technology also offers the added benefit of «Always-On Redundancy». With APT SureStream Technology, you can save thousands on your audio transport bills and still offer your listeners the highest quality sound.

SureStream technology is available as an option on this codec.

 Learn more about
SureStream


Advanced Telemetry & Remote Control with ScriptEasy

ScriptEasy is the revolutionary facility control software developed by WorldCast Systems to give users the power and flexibility to create “Smart” sites; ones that can automatically take action to correct any critical errors that affect operations.

Featuring an intuitive Graphic User Interface (GUI), ScriptEasy incorporates GPIO functions, serial communications, logic operators, live user inputs, timers and more. This allows the site operations to be “scripted”, to allow evaluation of multiple parameters and even automatically engage backup systems, while simultaneously alerting relevant technical personnel.

Learn more about
ScriptEasy


Connect with WorldCast MANAGER

The WorldCast MANAGER Desktop simplifies the management of all SNMP-enabled devices in a network, providing real-time status and visualization of multiple devices from a single screen. The intuitive and simple-to-use interface shows all devices located at your site(s) displaying product information, alerting you to any alarms and providing one-click access to the unit’s web-based control interface.

Free to download, the WorldCast MANAGER Desktop is compatible with all WorldCast Systems’ equipment as well as SNMP devices from ANY manufacturer.

The WorldCast MANAGER Server adds recorded measurements, detailed logs, alarm management / notifications and more…

Learn more about
WorldCast MANAGER Server
  Learn more about
WorldCast MANAGER Desktop


Applications

All the Benefits of SureStream on Your Existing IP Audio Codecs!

For broadcasters who wish to benefit from the cost savings and reliability offered by SureStream but don’t want to invest in new Codec hardware, the APT SureStreamer is the perfect solution. APT SureStreamer can sit in front of a UDP/RTP single port IP Audio Codec from any manufacturer. This enables the use of easily affordable IP connections to deliver broadcast-grade audio with no interruptions, glitches or drop-outs. SureStreamer continues to provide a seamless audio stream, even when one of the contributory links suffers a total Loss of Connection.

All the Benefits of SureStream on Your Existing IP Audio Codecs!

Remote Hub application

Remote Hub describes the wireless ingress from a mobile unit to the APT SureStreamer and the network. It allows the talent to roam within the range of the wireless coverage to conduct interviews etc. The APT SureStreamer acts as private Wi-Fi access point for the mobile unit and connects the talent’s device reliably with the connected network utilizing the APT SureStream Technology.

Remote Hub application

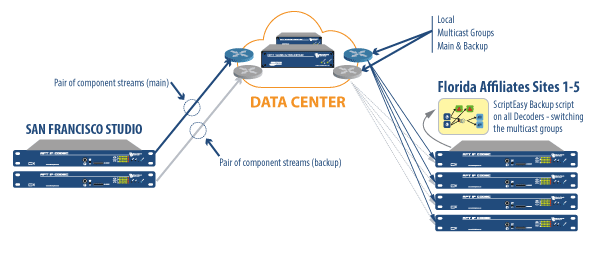

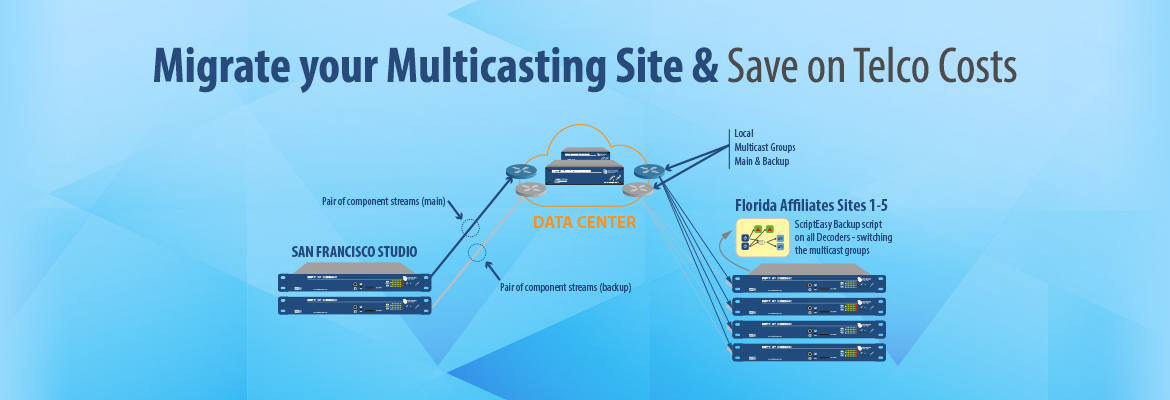

SureStreamer Data-Node to reduce Telco costs

This application is for broadcasters who wish to save on operational costs by utilizing a Telco data center or other POP close to the broadcasting area. The studio streams only one pair of component streams into the remote data center. In the data center, the APT SureStreamer receives the program stream and multiplies it using Multicast or Multiple Unicast technology. Using the APT SureStreamer as a node to migrate the Multicast function closer to the decoder significantly reduces the long haul Telco costs.

SureStreamer Data-Node to reduce Telco costs

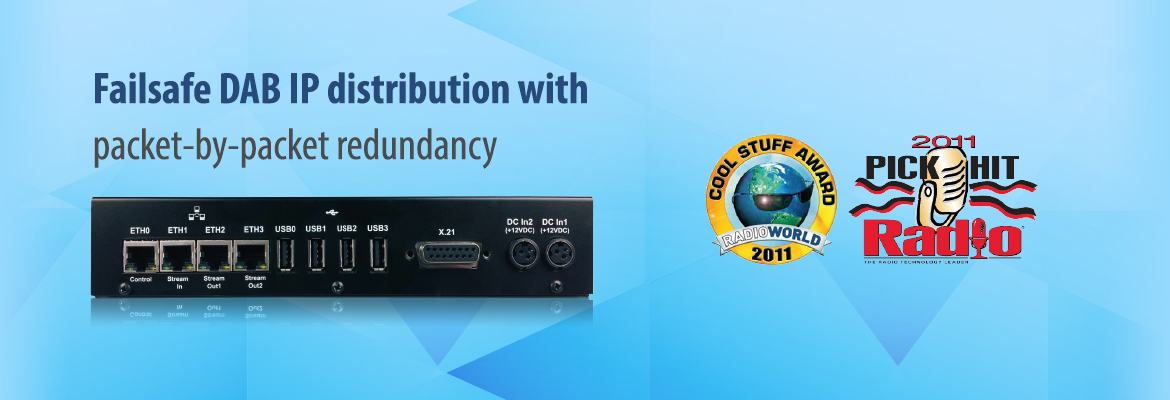

EDI Distribution for DAB Networks

For DAB applications, a specially licensed SureStreamer unit can enable broadcasters to replace dedicated internet links and expensive EDI switches with easily affordable public internet links.

APT SURESTREAMER EDI Distribution for DAB Networks
user report

User report

TheRadioHub is a software and technology development company, creating solutions for the broadcast industry. They are also a re-seller of advanced broadcast solutions, specializing in digital radio globally. The company’s main product is a cloud-based solution for digital broadcasting and information management for digital devices.

user report

User report

«[With SureStreamer], we now have a system that can deliver better reliability than an expensive fiberoptic line, and is using a mere cable modem and DSL line.  Instead of spending $1500/month we’re spending more like $200/month for both connections.»
Aaron Read, Director of Information Technology & Engineering, Rhode Island Public Radio, USA

Specifications

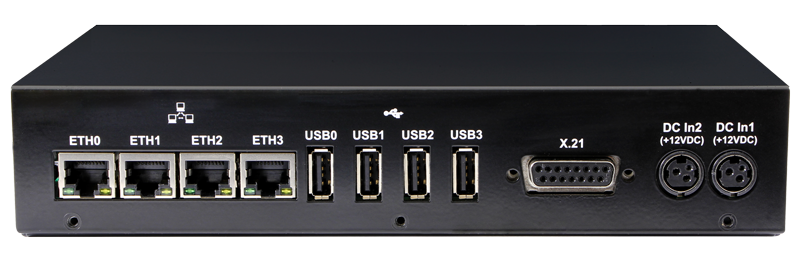

APT SURESTREAMER REAR PANEL
Interfaces
Ethernet4x RJ45 / 2x Fast Ethernet, 2x Gigabit Ethernet
USB4x USB interfaces for future use (supplies 5VDC, up to 1.500mA)
X.21Synchronous  X.21 (future use)
Power SupplyDual DC power supply connector with locking capability for ext. PSU
Network and Control
ControlWeb interface, SNMP manager/agent
User Management2 level accounts (Admin & Guest)
Email alertsSMTP client for email alerts
Ethernet IPIEEE 802.3, IPV4, manual port speed settings or auto-negotiation, UDP payload agnostic
Port assignmentFlexible assignment of physical ports (ingress and egress)
Protocols and ServicesFTP, HTTP, HTTPS, ICMP, NTP, SNMP, SMTP, DNS, Dynamic DNS, UPnP, VLAN#
RoutingPolicy routing and Layer 3 capability, individual forwarding rules
Stream ForwardingIP Forwarding (UDP)
Modes (UDP)Media Forwarding (RTP/UDP)
Net SecurityFirewall features
Options2nd Power supply
Performance and Monitoring
Data Throughput10Mbit/s LAN, 20Mbit/s WAN (1152 Bytes) varies with packet sizes
MonitoringPerformance monitor per stream
LoggingSystem Events Logging
Physical specification
External Dimensions (H/W/L)44mm x 220mm x 160mm - 1.73” x 8.66” x 6.3”
Weight< 1.5 kg (3.3 lbs)
Power Supply ext.100-240 V / 50-60 Hz 12VCD 36W (wall-mount)
Power ConsumptionTypical 15W depends on ext. Loads (USB)
CoolingPassive, no fans
Guaranteed Working Temperatures0°C - +45°C
HumidityUp to 95% relative humidity (non-condensing)

IMPORTANT NOTE:

SureStreamer is an IP network device that should be installed with the assistance of an IT administrator. As an option, WorldCast Systems offers remote online technical assistance for this installation (via TeamViewer) and on-site assistance can be offered on request

Order information

REFDescription
TFP0114Standard version, Desktop, 1PSU, 1RJ45 cable
Hardware options
SPP0012519" rack mount
SP019762nd Power supply
Software options
CD00168DAB Licence for APT SureStreamer
Services
066331/2-day online training or technical assistance on product installation
