Overview

The APT Dante Network Interface enables you to connect your APT Multi-channel AoIP Codec directly to a Dante or AES67 network.

This enables the codec to become fully integrated into your in-house network ecosystem, ensuring interoperability with near-zero latency and synchronization.

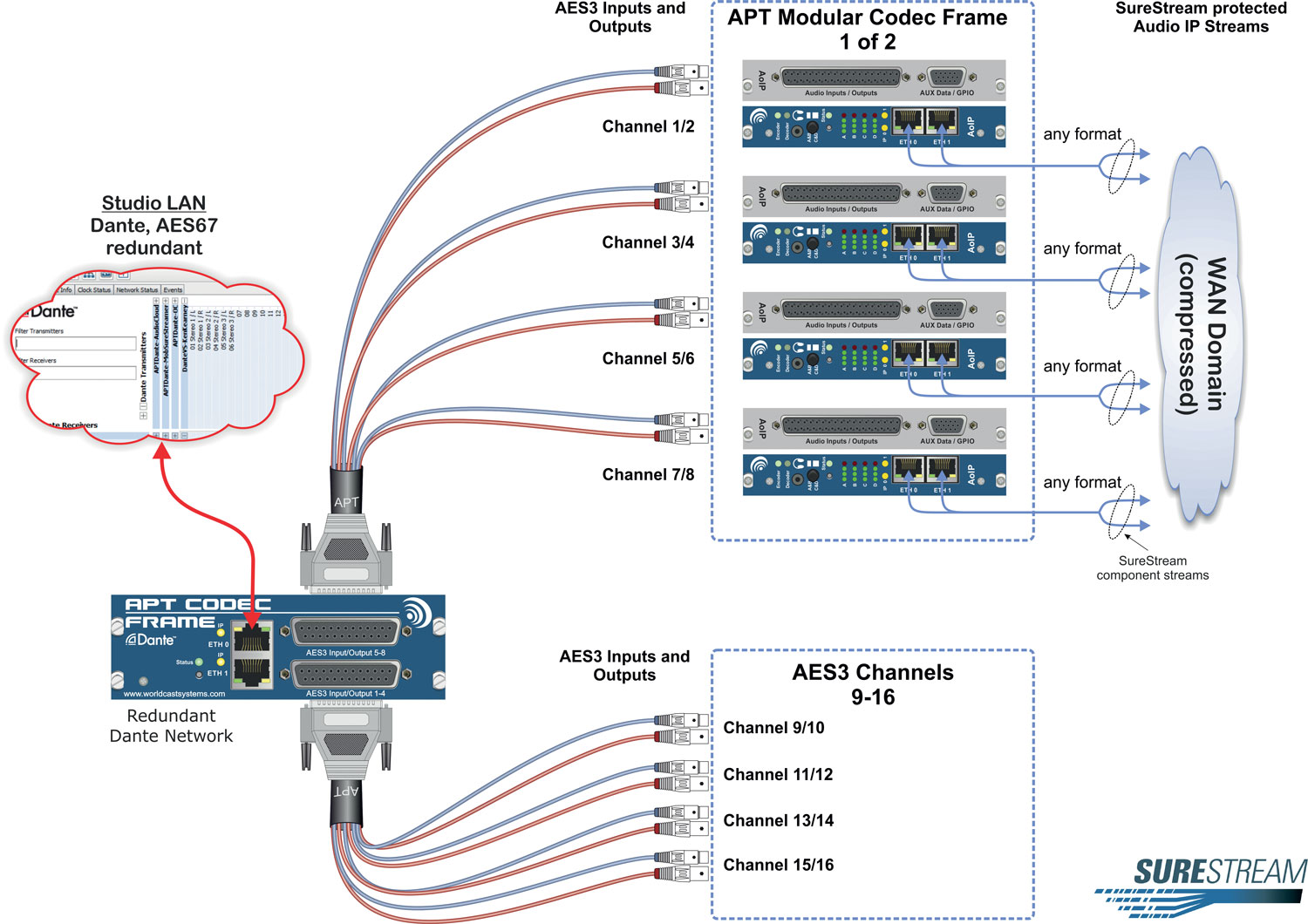

With the Dante interface fitted, your AoIP multichannel codec becomes the gateway from your local Dante domain to any network destination over external networks.

Features

Supports 16 x 16 channels of Dante Audio
Converts Dante audio streams to AES3 digital audio streams
Offers twice the capacity of a fully populated AoIP Multi-channel Codec (16 AES 3 audio signals presented as 8 stereo pairs)
Integrates AoIP cards into a Dante Network
Supports Audinate’s redundant streaming technology (dual IP interfaces in the LAN)
Offers SureStream technology to extend redundant streaming to the WAN
Support of AES67 from the Dante core module (AES67 mode selectable)
Dante Domain Manager certified

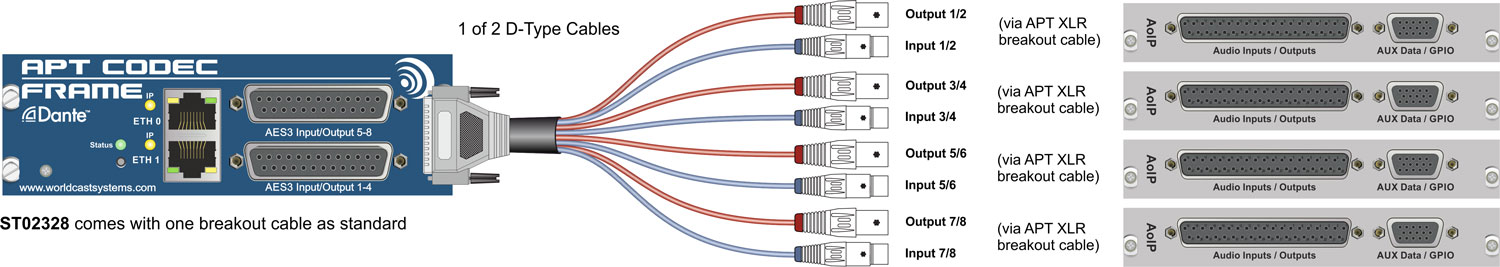

APT Dante Module Shows the external cable wiring to 4 AoIP cards
